Solar & Power
Off-grid, by design.
A professionally installed system designed predominantly for off-grid living: 8.25kW of solar, 47.6kWh nominal battery storage and a backup generator. Mains power is also on site at the front of the property, giving a future grid-connection option.
Owner photography
Power system
Select a photo to enlarge

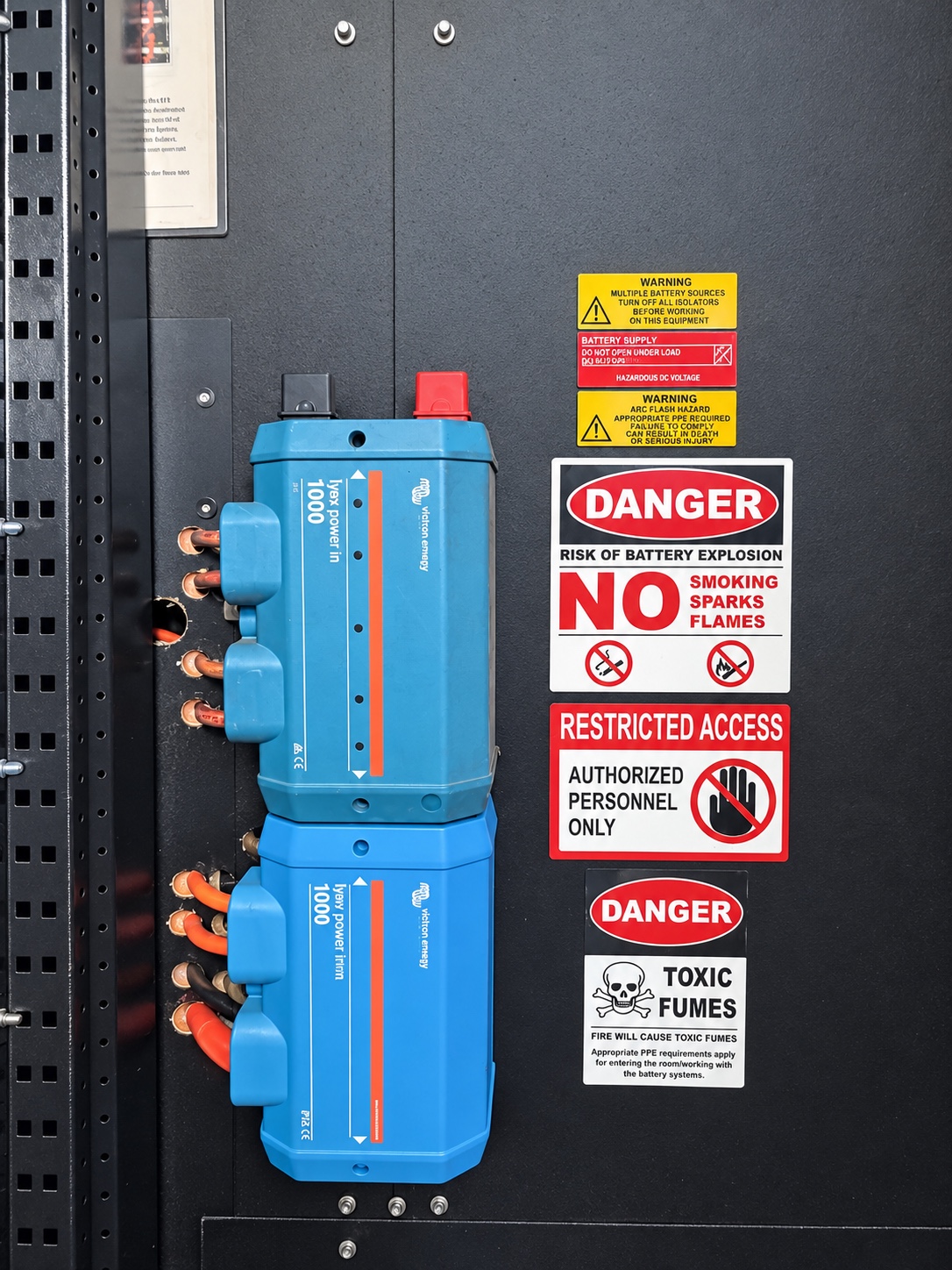

The installed batteries and inverters in the dedicated power shed.
Owner photography
Solar array
Select a photo to enlarge
The roof-mounted 8.25kW array on the main home.
Everyday living
No power bill, full family comfort
The system runs the home day to day, including 5 split-system air-conditioning units in the house and 3 in the portable building — 8 units across both. There is no grid electricity bill; generator fuel and servicing vary with weather and demand.
Solar
8.25kW roof-mounted array
25 × Trina 330W panels on the main home.
Battery storage
47.6kWh nominal

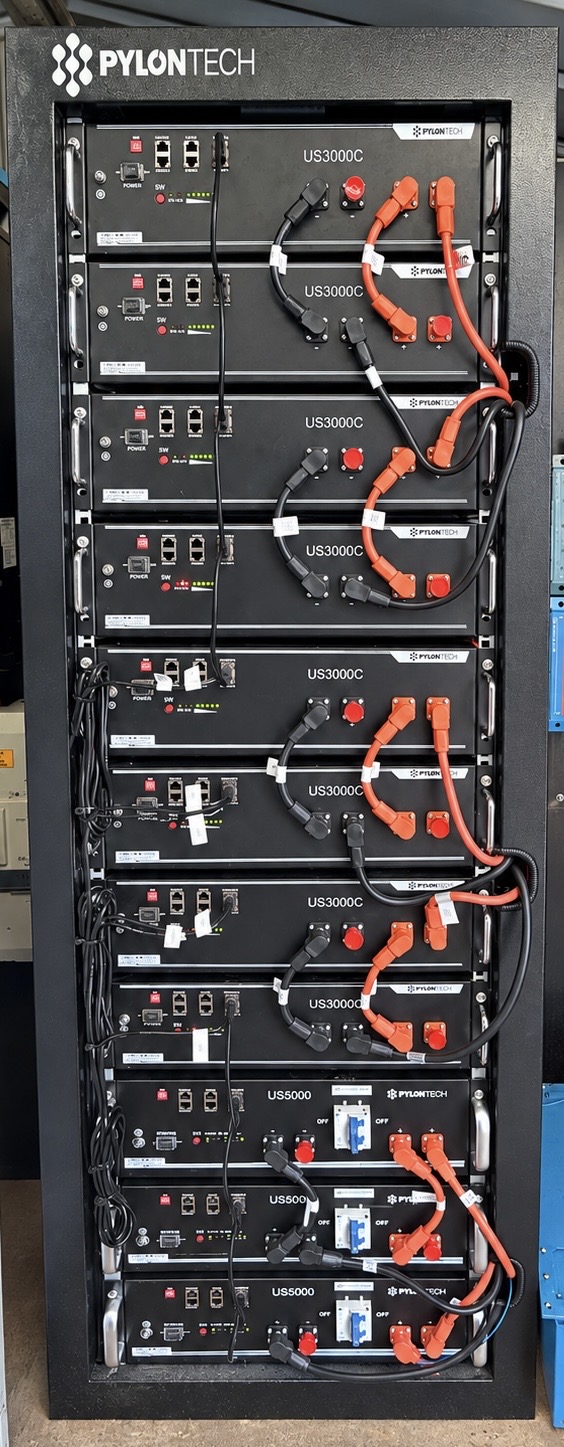

Approximately 45kWh usable — 8 × Pylontech US3000C plus 4 × Pylontech US5000 lithium iron phosphate modules.
Backup generator
Diesel generator
Blue Diamond GEN13FS water-cooled diesel generator (12kVA prime / 13.2kVA standby) for high demand and low-solar periods.
Inverters & power shed
Victron + Fronius

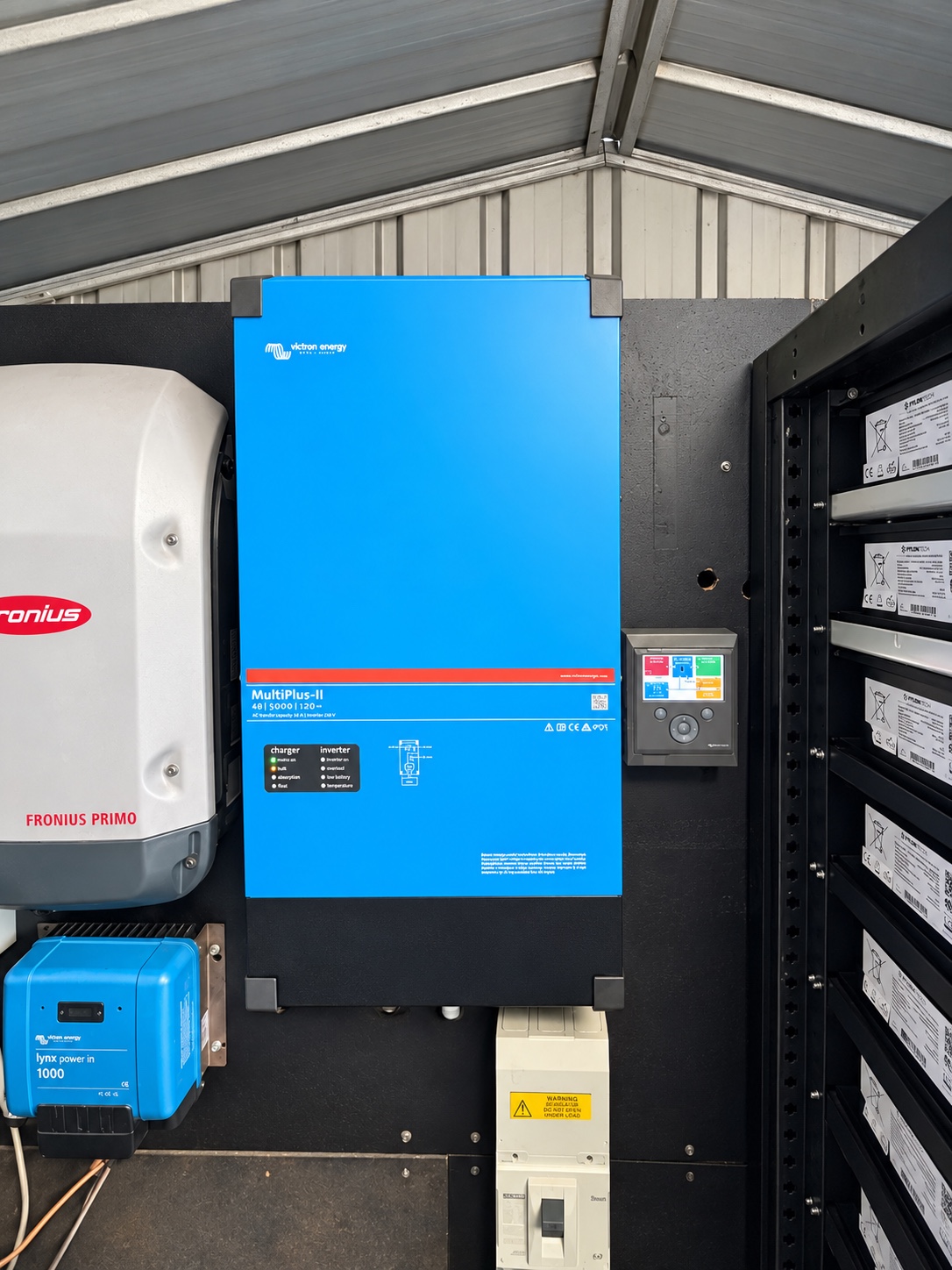

Victron MultiPlus-II 15kVA inverter/charger, Victron SmartSolar MPPT and Fronius Primo 5.0-1, with Victron monitoring. Housed in a dedicated power shed beside the home.
Future option
Mains power on site
Mains power is located at the front of the property, giving a future option to connect to the grid. The home itself runs off-grid and is not currently grid-connected.
